Single-channel static in situ/operando solid-state NMR probe for temperatures up to 300°C

• VT range: -30 to 300°C

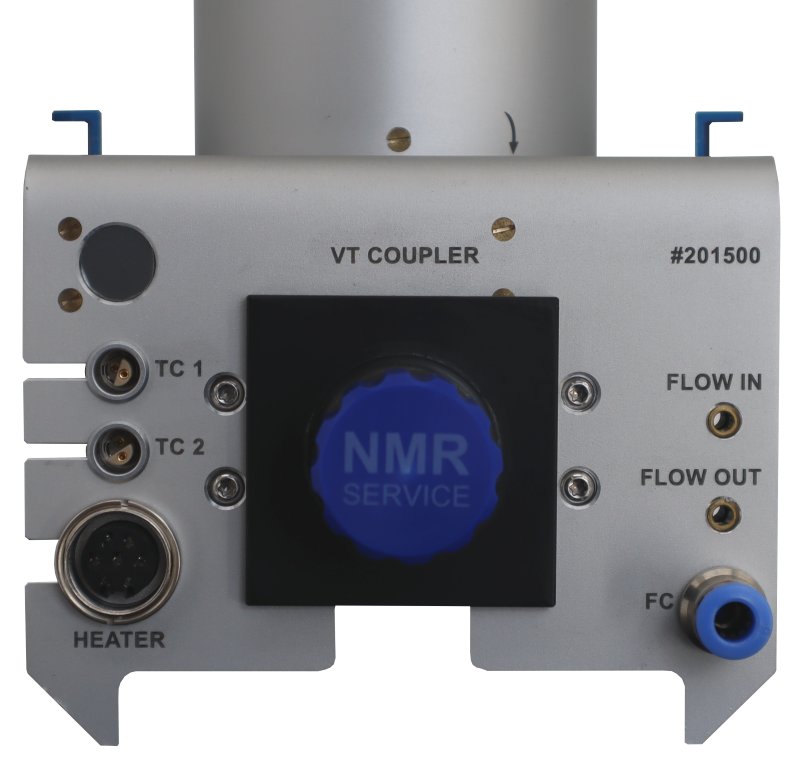

• Compatible with any heater/ temperature controller, e.g. Bruker
  --Recommended: ePROBE VT controller
• Increased heater capacity, isolation, and temperature shielding
• Wide-bore
• Fields: 200 to 500 MHz (other fields to be discussed)
• X-range: 13C to 31P (6Li and other nuclei to be discussed)
• H/F—X options to be discussed
• Automatic tune/match integrated
• Option: Goniometer for adjusting cell orientation relative to the magnetic field.

Electrochemistry/battery features and options

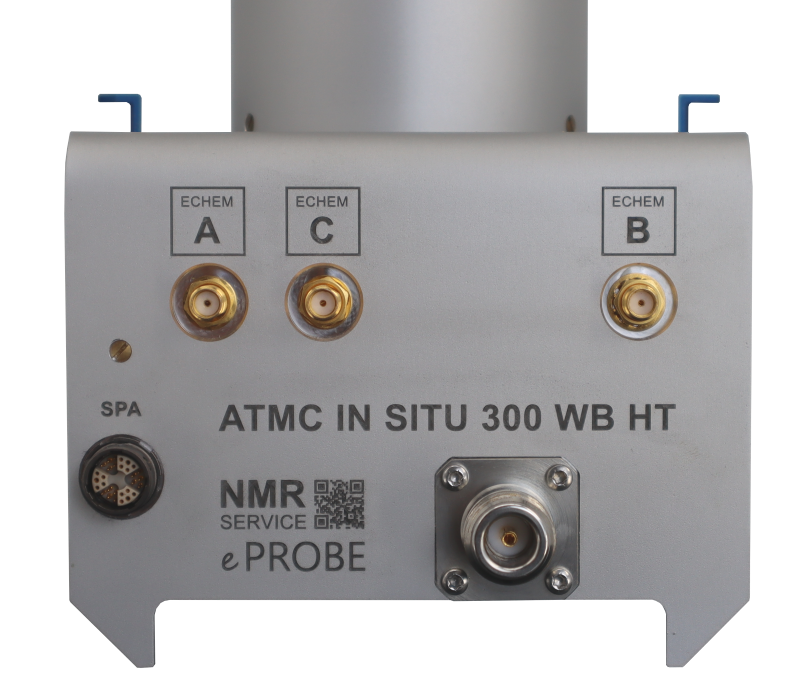

• Three e-chem ports (standard)
• Option: four e-chem ports for EIS applications
• Cycling with up to at least 2 A current
• Suitable for in situ NMR cells in all sizes/dimensions
  -- Recommended: High Temperature cells made from Vespel® SP-1
• Flow option, e.g. for electrocatalysis cells
• Suitable for all electrochemical cyclers
