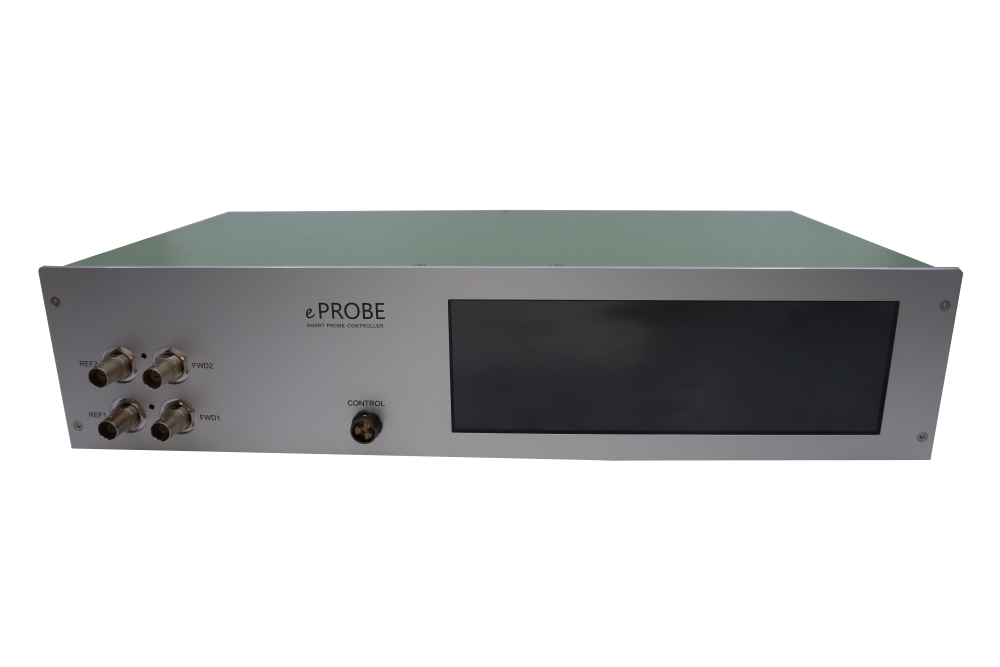

SMART PROBE CONTROLLER

  • Stand-alone controller unit with integrated software package
  • Enables remote/manual and automatic tuning/matching (max. three channels)
  • Enables remote/manual and automatic goniometer control
  • Suitable for eATM ROBOT and ePROBE probes
  • Compatible with any console, e.g. Bruker (Av. III HD, Neo), Tecmag, Varian
  • Compatible with any NMR software, e.g. Bruker TopSpin, TNMR

Configurations

  • Single-, double-, and triple-channel controller with software
  • Any channel can be used for goniometer control
  • Software adapts to selected/detected probe
    -- e.g. double-channel version to control Tune/Match—X and goniometer
    – e.g. double-channel version to control Tune/Match—X and Tune/Match—H

Interface

  • Plug-and-play interface to NMR console via USB and/or TTL
  • One TTL output/channel required (start tuning/matching or goniometer)
  • One TTL input required (stop tuning/matching or goniometer)
  • Full synchronisation with the pulse sequence via preamble, e.g. Bruker

Controls and features

  • USB interface for external keyboard and USB-C data stick

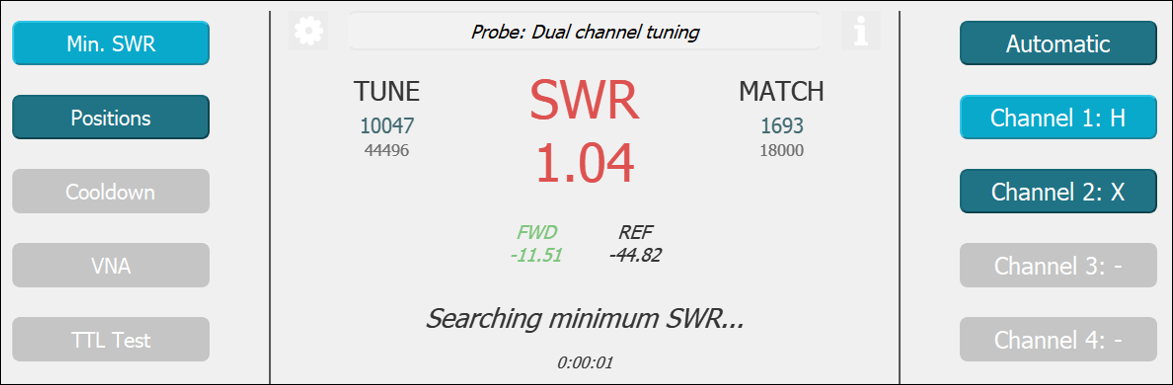

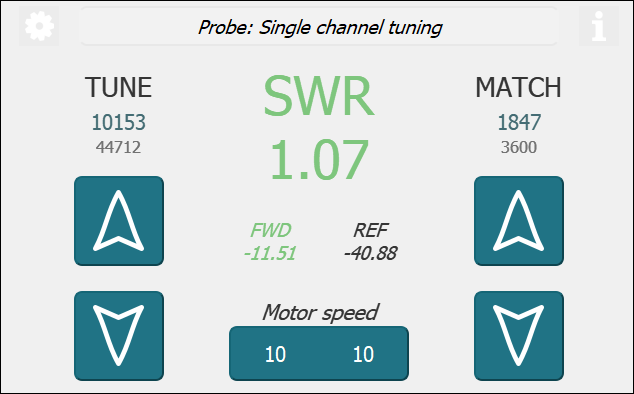

  • Control via front panel touch screen or VNC connection to any computer
  • Total frequency range: 30 – 900 MHz
  • Usable frequency range depends on the probe and spectrometer
  • Automatic probe settings detection (smart probe adapter)
  • Maximum flexibility for automatic tuning/matching
    -- Automatic tuning/matching mode (continuously/on-the-fly)
    -- Tuning/matching by list (pre-save 100+ positions)
  • Optimal re-calibration of the carrier frequency in automatic measurements of
    -- different nuclei,
    -- frequency sweep / variable offset cumulative spectra (VOCS) NMR,
    -- variable temperature and similar NMR/NQR experiments

AUTOTUNE CONTROLLER (discontinued)

  • Suitable for eATM ROBOT and ePROBE probes
  • Compatible with any console, e.g. Bruker (Av. III HD, Neo), Tecmag, Varian
  • Compatible with any NMR software, e.g. Bruker TopSpin, TNMR

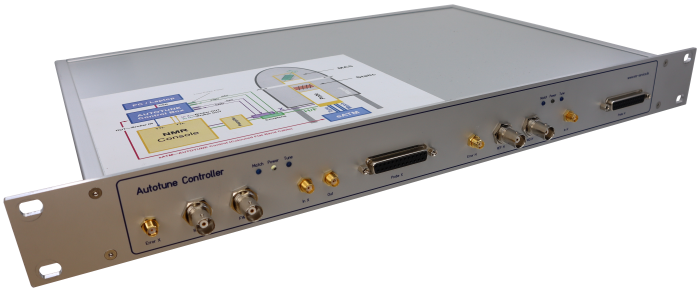

AUTOTUNE H/F—X controller

  • Two-channel AUTOTUNE controller unit
  • Enables automatic tune/match for eATM ROBOT and ePROBE probes
  • Total frequency range: 30 - 900 MHz
  • Usable frequency range depends on probe/console
  • Includes interface to console
  • Synchronisation via TTL:
    -- One TTL output (console—box): start AUTOTUNE—H/F
    -- One TTL output (console—box): start AUTOTUNE—X
    -- One TTL input (box—console): stop any AUTOTUNE
  • USB interface to computer/software
  • Option: upgrade with third channel

AUTOTUNE—H/F and AUTOTUNE—X software

  • Enables manual and automatic tune/match via AUTOTUNE controller
  • Runs on MS Windows 11 and lower versions
  • Synchronisation with the pulse sequence via preamble
  • Probe selection menu and/or probe identifier module
  • Maximum flexibility in re-calibration
    -- Automatic tune/match mode (continously)
    -- Go to saved positions (up to four) followed by automatic tune/match
    -- Tune by list (pre-save 100+ positions) followed by automatic tune/match

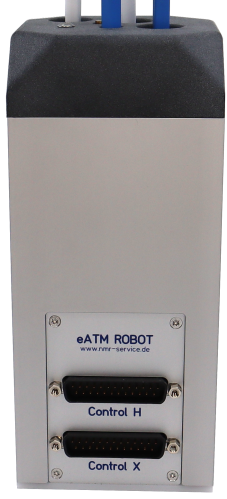

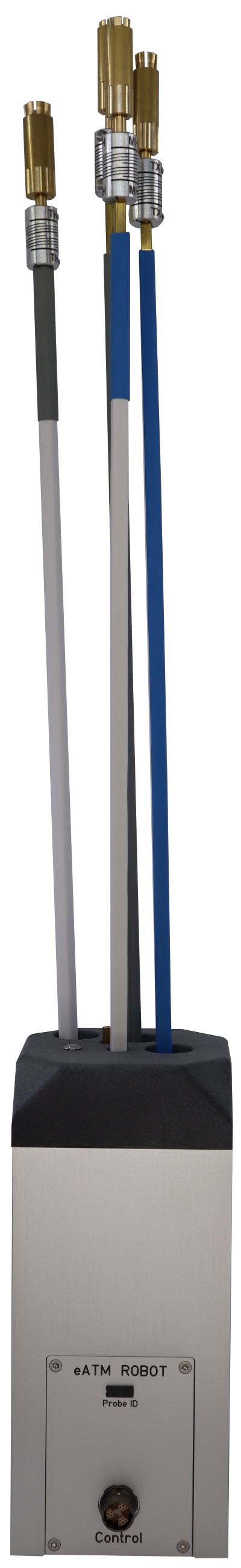

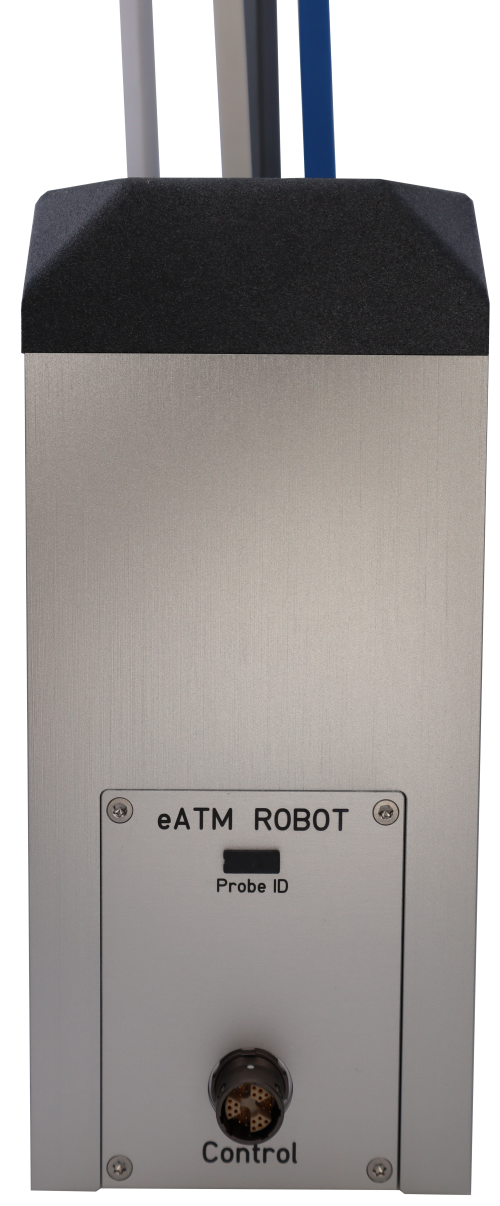

H/F—X eATM ROBOT

  • Double-channel external automatic tuning matching (eATM) robot
  • Stand-alone unit with hard- and software
  • Suitable for any NMR/NQR experiment that requires automatic re-calibration of the resonance circuit (tune/match), e.g.
    -- variable-temperature NMR
    -- frequency sweep/VOCS experiments
    -- in situ NMR experiments
  • Suited for H/F—X or X—Y or similar static and MAS probes
  • Suitable for any magnet and fields of 100 MHz to 1 GHz
  • Suitable for any NMR console
  • Robot unit with four motor/encoder units for H/F—X tune/match
  • Floor plate to position robot underneath the magnet

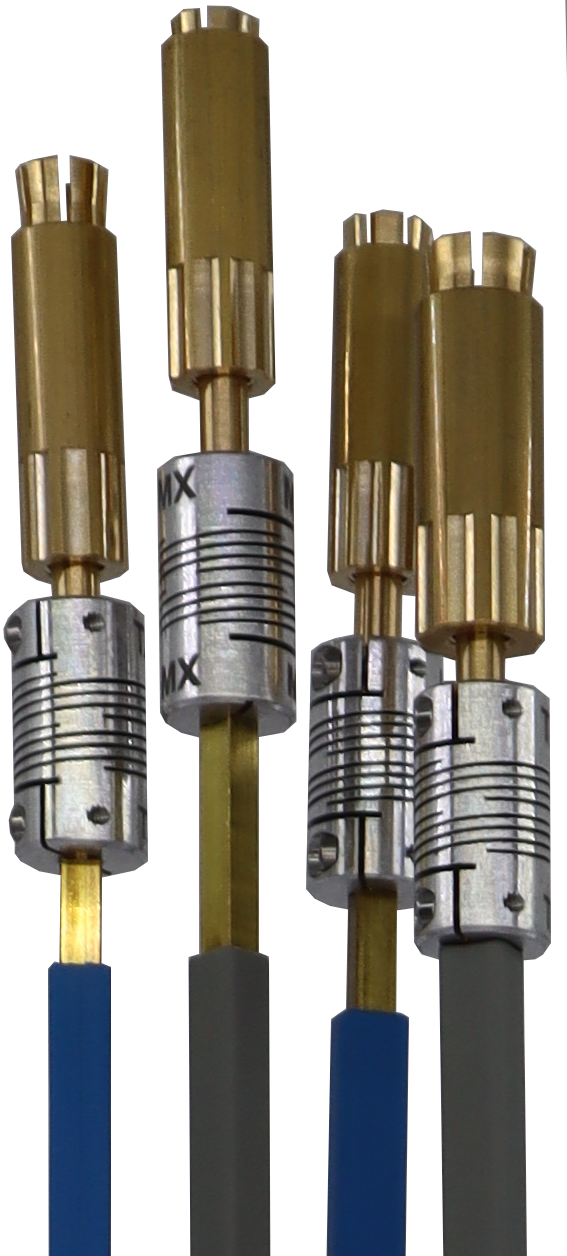

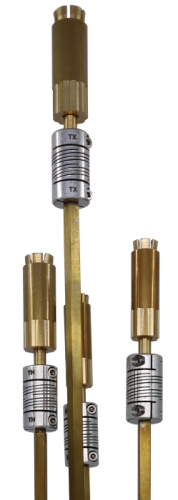

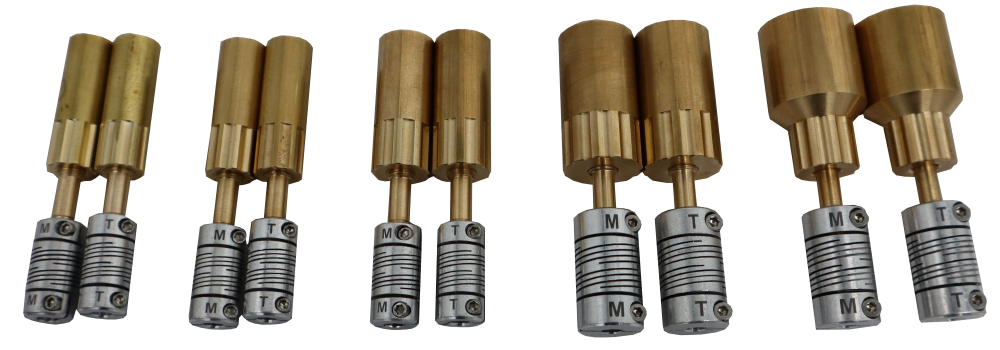

  • Fingertips to attach tune/match elements of the probe to the robot
  • Electronics and interface to AUTOTUNE controller
  • Hardware fitted to customer requirements
  • Option: upgrade to third channel, e.g. for H/F—X—Y probes

BioLogic SP-50e(z)

BioLogic SP-50e potentiostat

  • Cost-effective, portable, robust, single channel, general purpose potentiostat perfect for both general electrochemistry research needs as well as teaching
  • Voltage
    -- Control voltage: ±10 V
    -- Voltage resolution: 5 µV on 200 mV range
    -- Compliance: ±10 V
  • Current
    -- Current ranges: 1 A to 10 µA (standard)
    -- Maximum current: ±1 A
    -- Current resolution: 0.760 nA
  • Advanced
    -- Connection 2,3,4,5 terminal lead
    -- Best acquisition time: 20 µs with OEM package
    -- Stability control mode (7 bandwidths)
    -- Control software: EC-Lab® (incl. free updates) and EC-Lab® Express
    -- Ethernet or USB 2.0 connection to PC/laptop

BioLogic SP-50ez potentiostat (with EIS)

  • Cost-effective, portable, robust, single channel, general purpose potentiostat perfect for both general electrochemistry research needs as well as teaching
  • Voltage
    -- Control voltage: ±10 V
    -- Voltage resolution: 5 µV on 200 mV range
    -- Compliance: ±10 V
  • Current
    -- Current ranges: 1 A to 10 µA (standard)
    -- Maximum current: ±1 A
    -- Current resolution: 0.760 nA
  • Electrochemical Impedance Spectroscopy (EIS)
    -- Frequency range: 1 MHz down to 10 µHz
  • Advanced
    -- Connection 2,3,4,5 terminal lead
    -- Best acquisition time: 20 µs with OEM package
    -- Stability control mode (7 bandwidths)
    -- Control software: EC-Lab® (incl. free updates) and EC-Lab® Express
    -- Ethernet or USB 2.0 connection to PC/laptop

Options for SP-50e and SP-150e

  • Additional cell cable 3 m
  • Additional cell cable 5 m
  • Additional cell cable 10 m

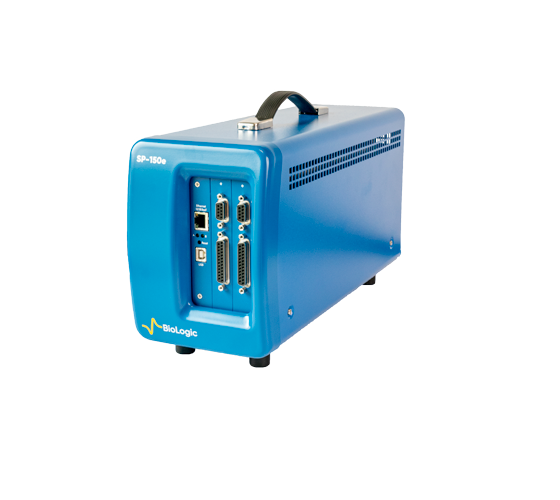

BioLogic SP-150e(z)

BioLogic SP-150e potentiostat

  • The SP–150e is the only ampere capable electrochemical workstation to boast high-current capability (800 A with boosters), three EIS quality indicators (THD, NSD, NSR) for Electrochemical Impedance Spectroscopy validation and Ethernet compatibility for improved group-working.
  • Voltage
    -- Control voltage: ±10 V adjustable between[-20; to +20] V (standard); up to 60 V with FlexP0060/FlexP0160
    -- Voltage resolution: 5 µV on 200 mV range
    -- Compliance: ±10 V adjustable between [-20; to +20] V (standard)
  • Current
    -- Current ranges: 1 A to 10 µA (standard)
    -- Maximum current: ±1 A; up to 800 A with four FlexP0012
    -- Current resolution: 0.760 nA
  • Advanced
    -- Up to 2 channels
    -- Connection 2,3,4,5 terminal lead
    -- Best acquisition time: 20 µs with OEM package
    -- Stability control mode (7 bandwidths)

BioLogic SP-150ez potentiostat (with EIS)

  • The SP–150e is the only ampere capable electrochemical workstation to boast high-current capability (800 A with boosters), three EIS quality indicators (THD, NSD, NSR) for Electrochemical Impedance Spectroscopy validation and Ethernet compatibility for improved group-working.
  • Voltage
    -- Control voltage: ±10 V adjustable between[-20; to +20] V (standard); up to 60 V with FlexP0060/FlexP0160
    -- Voltage resolution: 5 µV on 200 mV range
    -- Compliance: ±10 V adjustable between [-20; to +20] V (standard)
  • Current
    -- Current ranges: 1 A to 10 µA (standard)
    -- Maximum current: ±1 A; up to 800 A with four FlexP0012
    -- Current resolution: 0.760 nA
  • Electrochemical Impedance Spectroscopy (EIS)
    -- Frequency range: 1 MHz down to 10 µHz
  • Advanced
    -- Up to 2 channels
    -- Connection 2,3,4,5 terminal lead
    -- Best acquisition time: 20 µs with OEM package
    -- Stability control mode (7 bandwidths)

Options for SP-50e and SP-150e

  • Additional cell cable 3 m
  • Additional cell cable 5 m
  • Additional cell cable 10 m

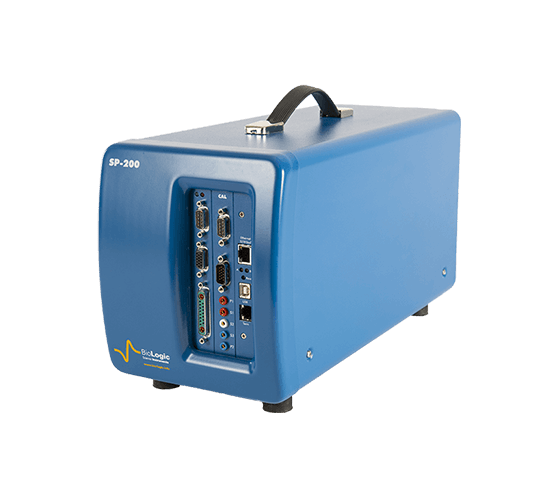

BioLogic SP-200

BioLogic SP-200 potentiostat (with EIS)

  • Single channel – transportable potentiostat
  • The perfect electrochemical workstation for corrosion with the 100 fA accuracy ultra-low current option
  • Voltage
    -- Compliance: ±12 V; [0; 48] V with HCV-3048
    -- Control voltage: ±10 V ; [0; 48] V with HCV-3048
    -- Voltage resolution: 1 µV on 60 mV range
  • Current
    -- Current ranges: 500 mA to 10 nA (standard); down to 1 pA (Ultra Low Current – option!)
    -- Maximum current: ±500 mA (standard); up to 120 A with four HCV-3048
    -- Current resolution: 760 fA (standard); down to 76 aA (Ultra Low Current – option!)
    -- Note, ultra low current is an option (additional module) and not included with this configuration.
  • Electrochemical Impedance Spectroscopy (EIS)
    -- Frequency range:
    -- 7 MHz (3%, 3°) down to 10 µHz; 3 MHz (1%, 1°)
    -- EIS quality indicators
  • Advanced
    -- Connection 2,3,4,5 terminal lead
    -- Best acquisition time: 12 µs with EC-Lab Express; 1 µs with ARG option
    -- Floating mode – relevant if your cell is grounded via the in situ NMR probe/experiment
    -- Analog filtering
    -- Calibration board
    -- Full stability control mode (9 bandwidths)
