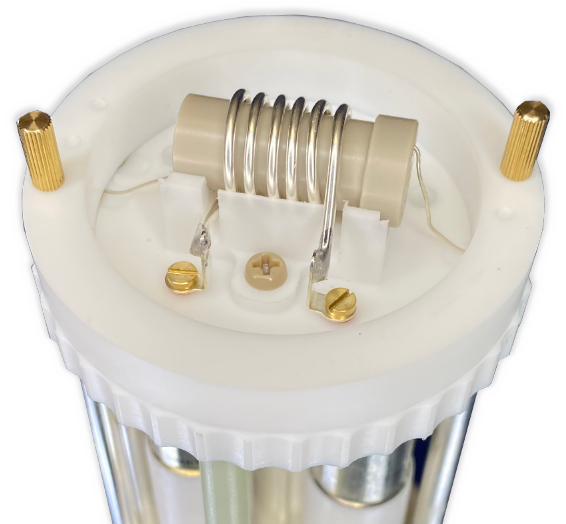

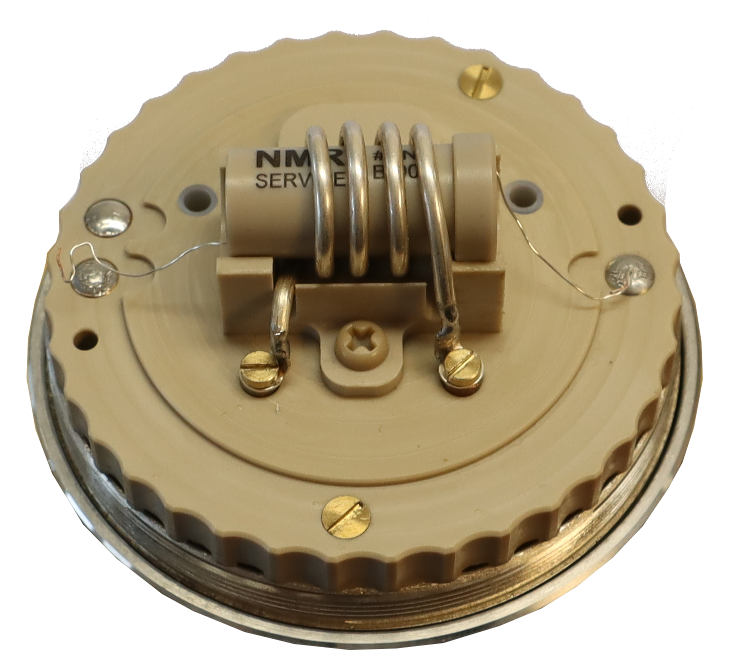

STATIC—X IN SITU NMR PROBES

Single-channel static in situ/operando solid-state NMR probe

  • Wide-bore or narrow/standard-bore
  • Fields: 200 to 700 MHz
  • X-range: 13C to 31P and 6Li
  • Automatic tuning and matching
  • Suitable for all NMR systems

Electrochemistry/battery options

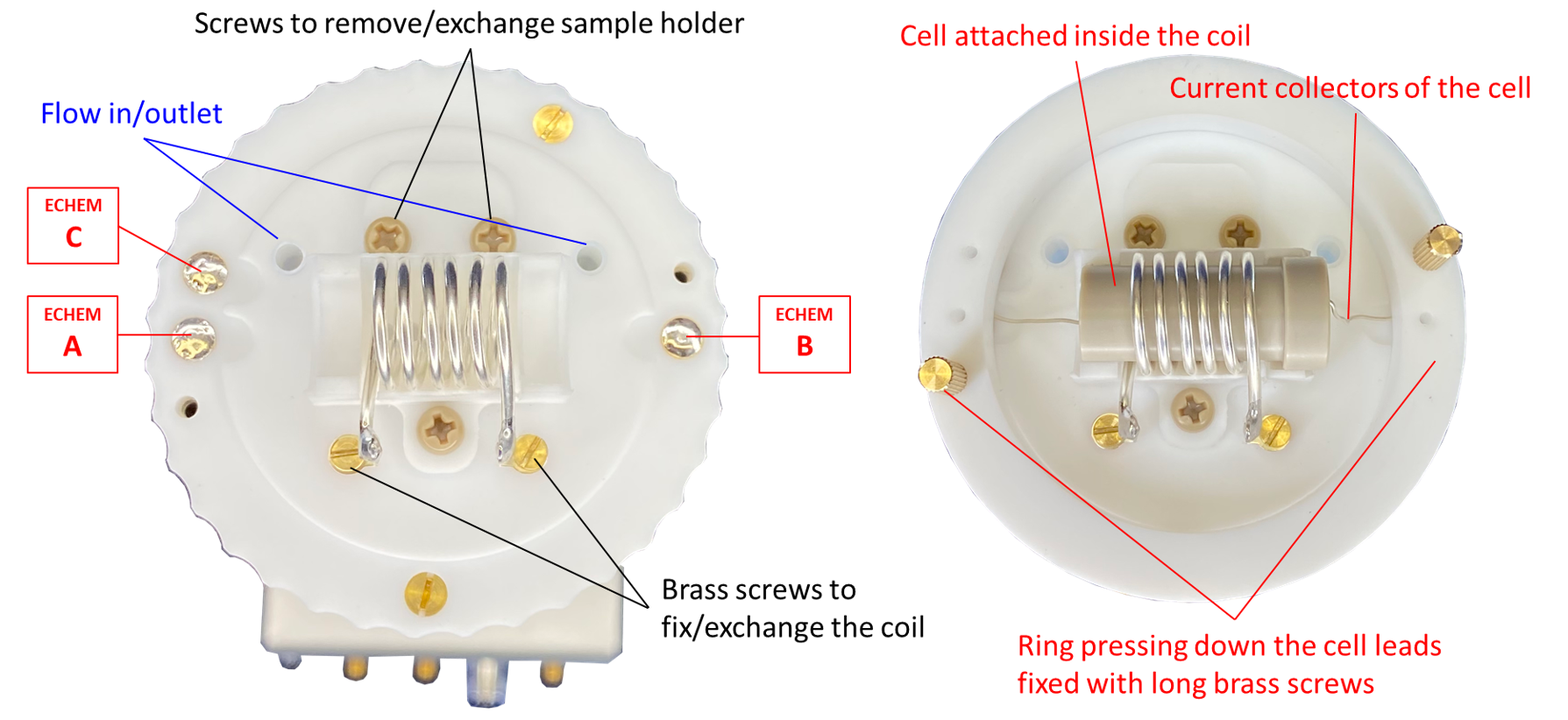

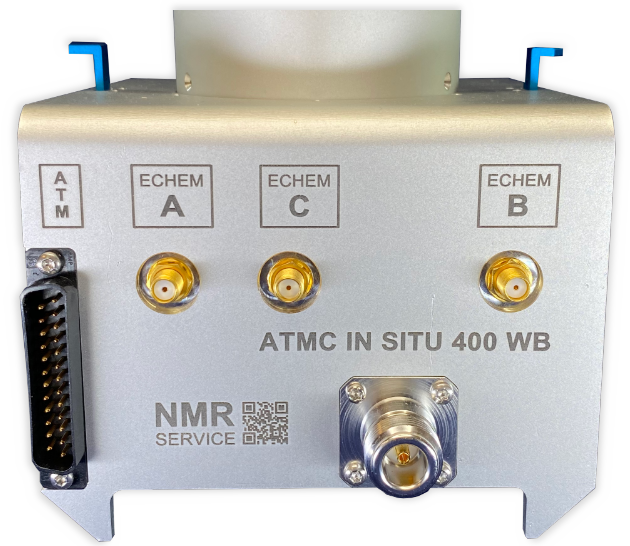

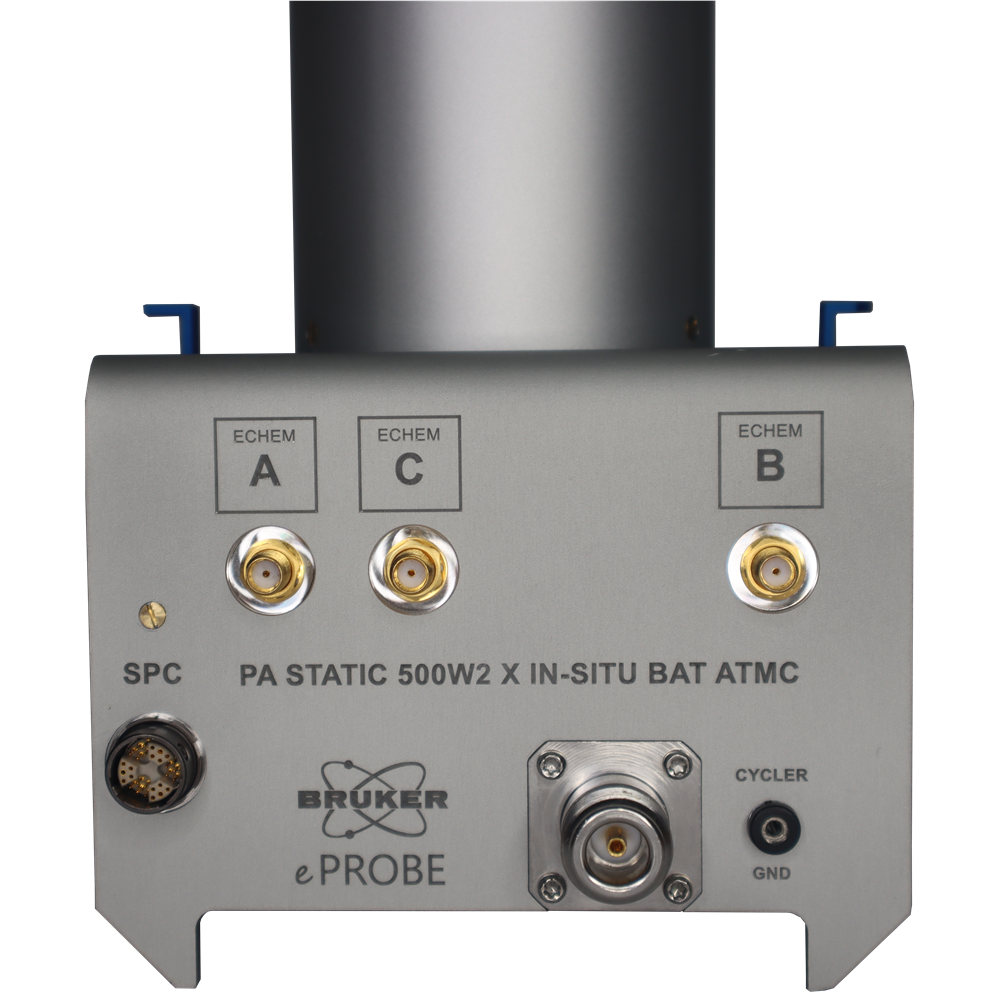

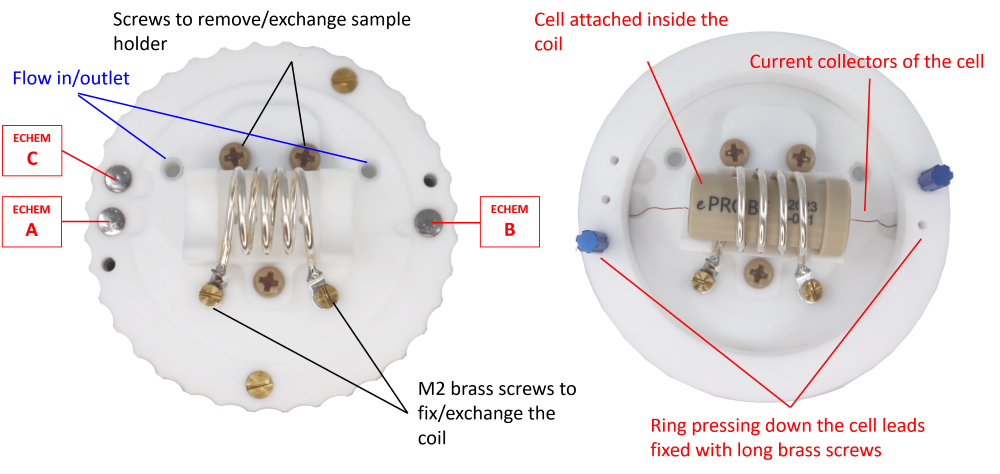

  • Three electrochemistry ports (Option: 4 ports)

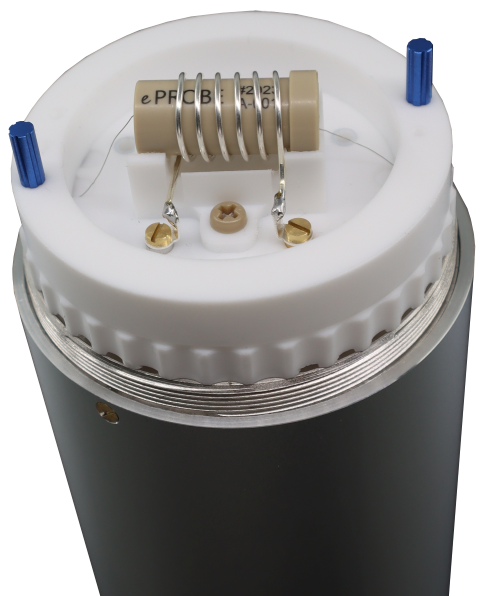

  • Suitable for various in situ NMR cells incl. plastic cell capsules and plastic bag cells

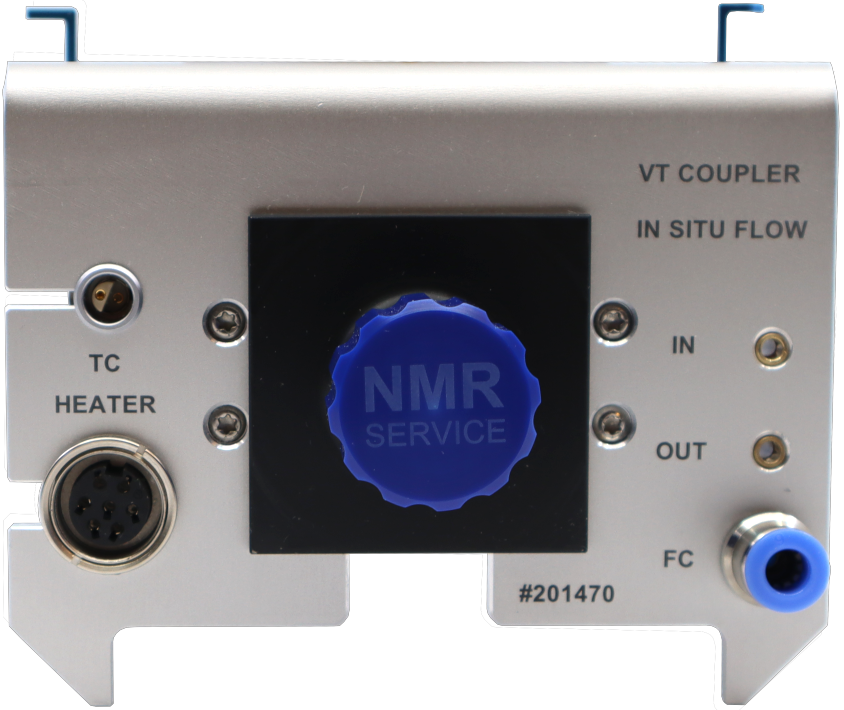

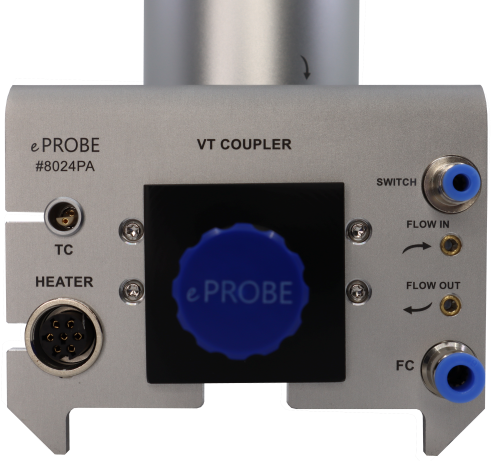

  • Flow option, e.g. for redox flow cells
  • Suitable for all electrochemical cyclers

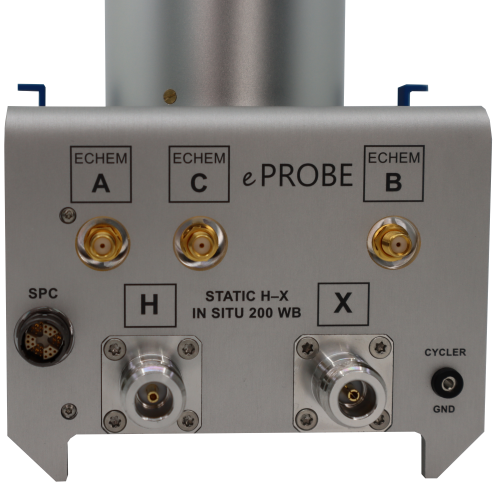

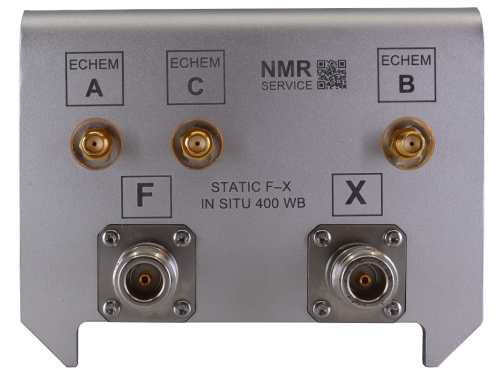

STATIC H/F—X IN SITU NMR PROBES

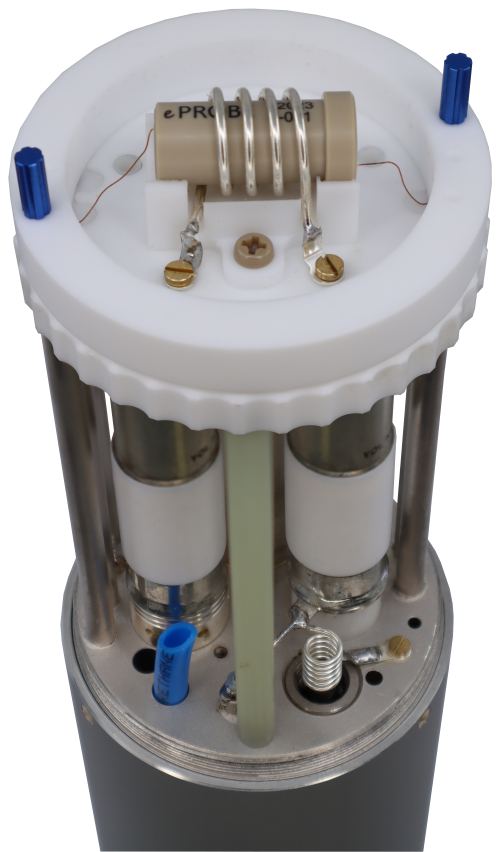

Double-channel static in situ/operando solid-state NMR probe

  • Wide-bore
  • Narrow/standard bore options to be discussed
  • Optimised for low 1H or 19F background
  • Fields: 200 to 500 MHz
  • X-range: 13C to 31P and 6Li
  • H/F-range: 1H or 19F (1H and 19F to be discussed)
  • Automatic tuning and matching
  • Suitable for all NMR systems

Electrochemistry/battery options

  • Three electrochemistry ports (Option: 4 ports)
  • Suitable for various in situ NMR cells incl. plastic cell capsules and plastic bag cells

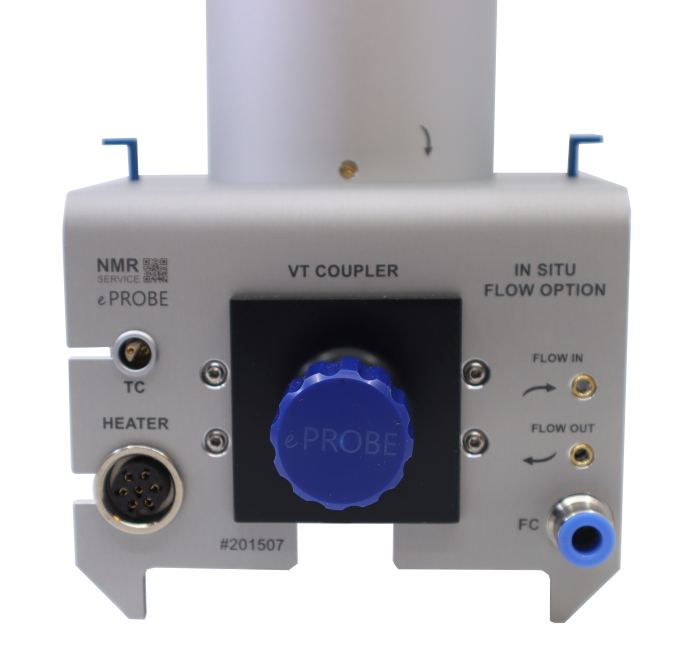

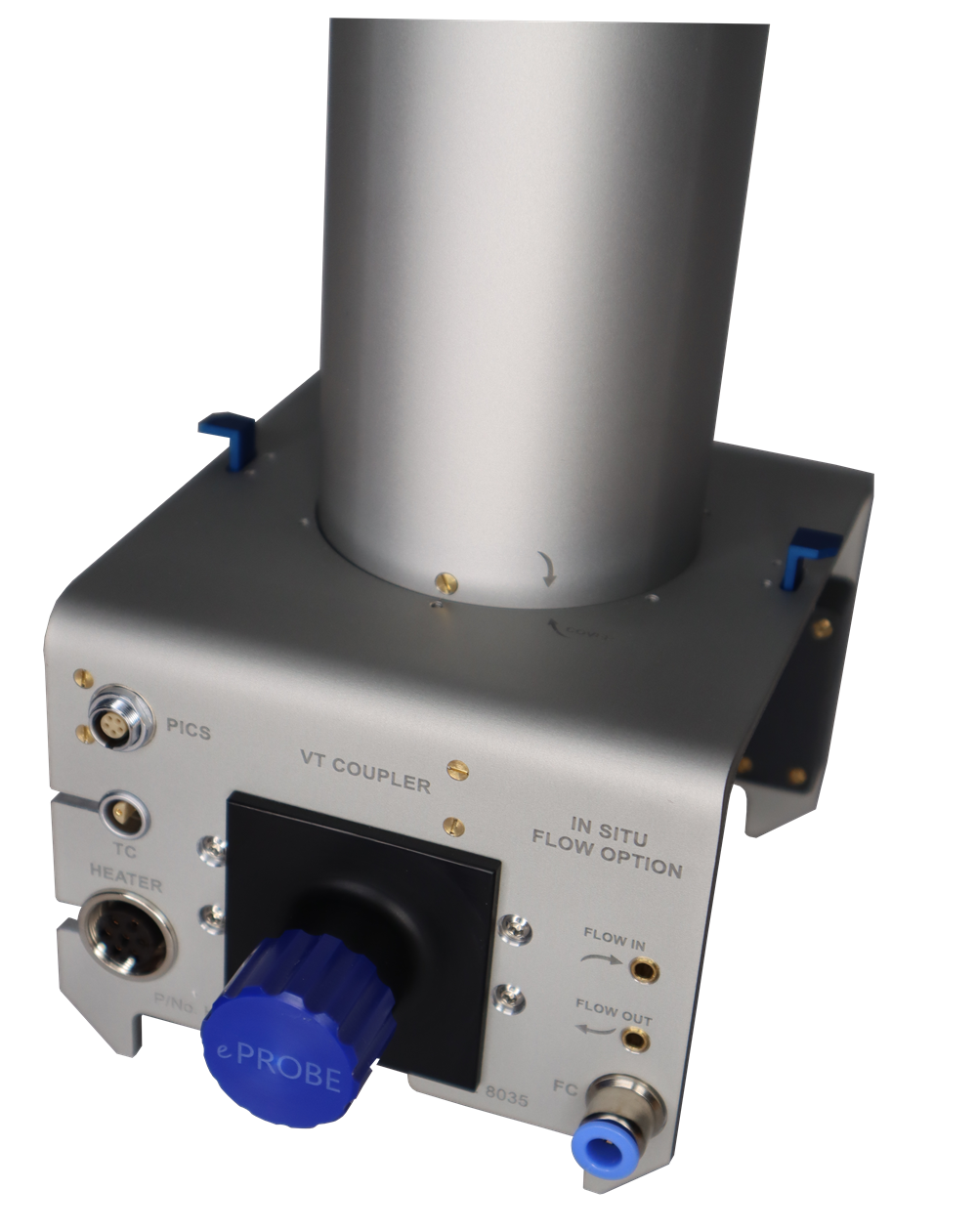

  • Flow option, e.g. for redox flow cells
  • Suitable for all electrochemical cyclers

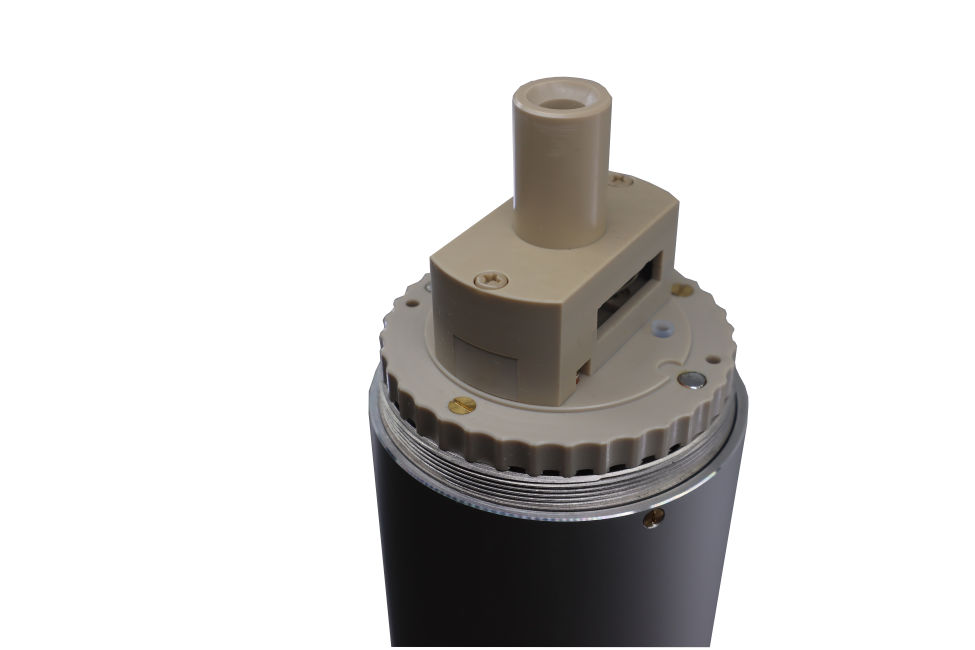

STATIC COIN/ POUCH CELL IN SITU NMR PROBES

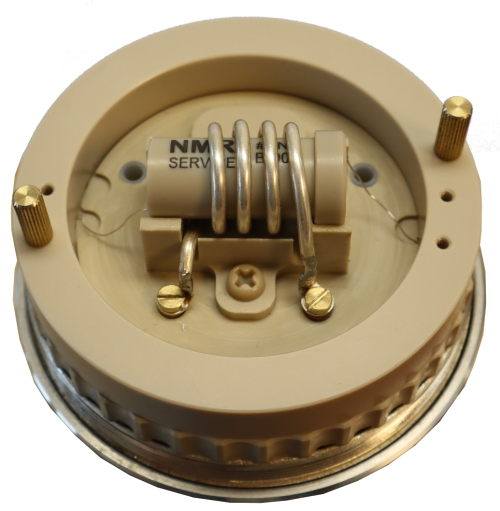

In situ/operando solid-state NMR probe for the analysis of coin cells and pouch cells

  • Wide-bore
  • Fields: 200 to 600 MHz
  • X-channel: 13C to 31P and 6Li
  • H/F-channel: to be discussed
  • Automatic tuning and matching
  • Suitable for all NMR systems

Electrochemistry/battery options

  • Three electrochemistry ports
  • Suitable for coin cells, pouch cells and plastic bag cells
  • Suitable for all electrochemical cyclers

Watch this space for your customised solution - contact us.
