STATIC—X IN SITU NMR SB PROBES

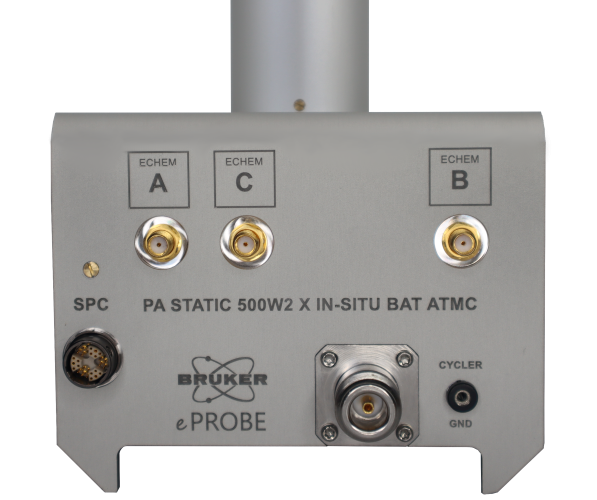

Single-channel static in situ/operando solid-state NMR probe
- Narrow/standard-bore
- Fields: 200 to 700 MHz
- X-range: 13C to 31P
- Automatic tune/match integrated
- Suitable for all NMR systems
Electrochemistry/battery features and options

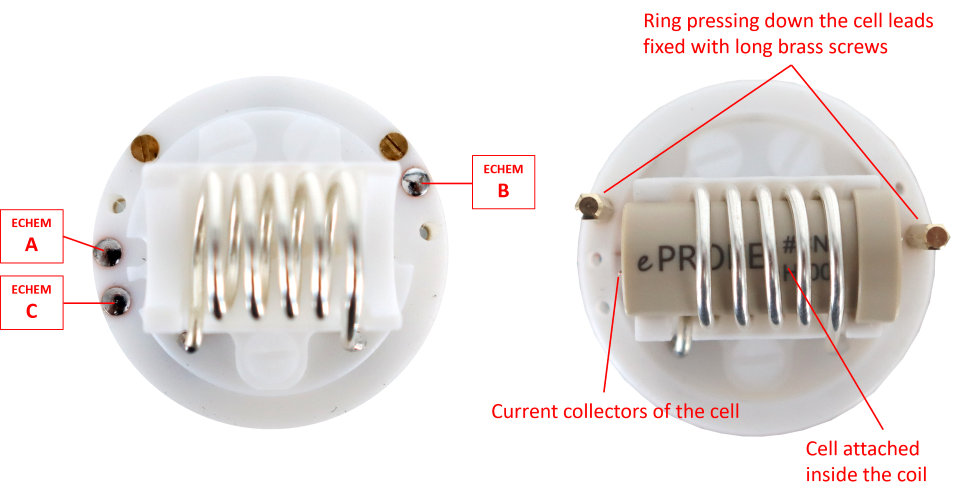

- Three e-chem ports (standard)
- Option: two e-chem and two flow in/outlet ports (flow option)
- Suitable for plastic cell capsules OD11 (short) and plastic bag cells
- Suitable for all electrochemical cyclers
- Flow option, e.g. for redox flow cells and gas flow reactions

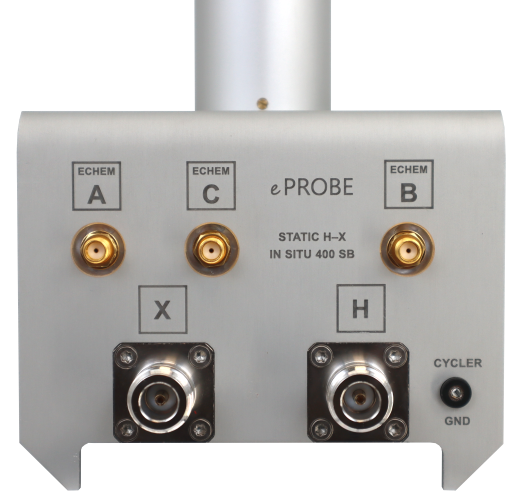

STATIC H/F—X IN SITU NMR SB PROBES
Double-channel static in situ/operando solid-state NMR probe
- Narrow/standard bore
- Fields: 400 to 600 MHz
- Optimised for low 1H or 19F background
- X-range: 13C to 31P
- H/F-range: 1H and 19F
- Manual tune/match for both channels
- Suitable for all NMR systems
- Option: automatic tune/match via eATM ROBOT
Electrochemistry/battery features and options
- Three e-chem ports (standard)
- Option: two e-chem and two flow in/outlet ports (flow option)
- Suitable for plastic cell capsules OD11 (short) and plastic bag cells
- Suitable for all electrochemical cyclers
- Flow option, e.g. for redox flow cells and gas flow reactions
Watch this space for your customised solution - contact us.
