In situ/operando solid-state NMR probe for the analysis of coin cells and pouch cells

• Wide-bore
• Fields: 200 to 600 MHz
• X-channel: 13C to 31P and 6Li
• Automatic tune/match integrated
• Suitable for all NMR systems
• Option: two-channel version with fixed frequencies, e.g. 1H and 7Li
• Option: automatic tune/match for 1H/7Li version via eATM ROBOT

Electrochemistry/battery features and options

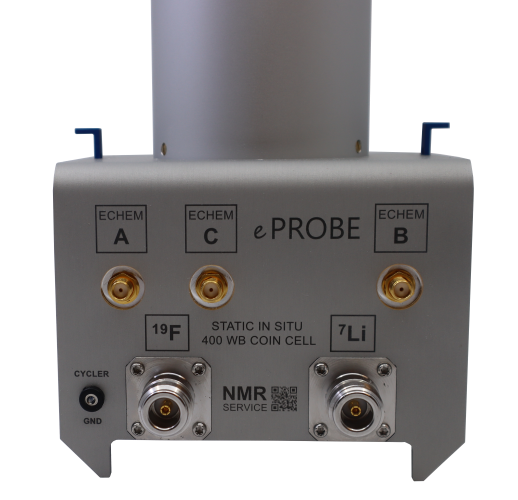

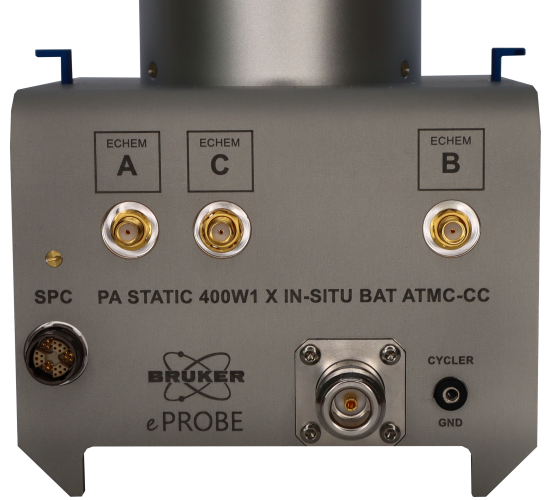

• Three electrochemistry ports

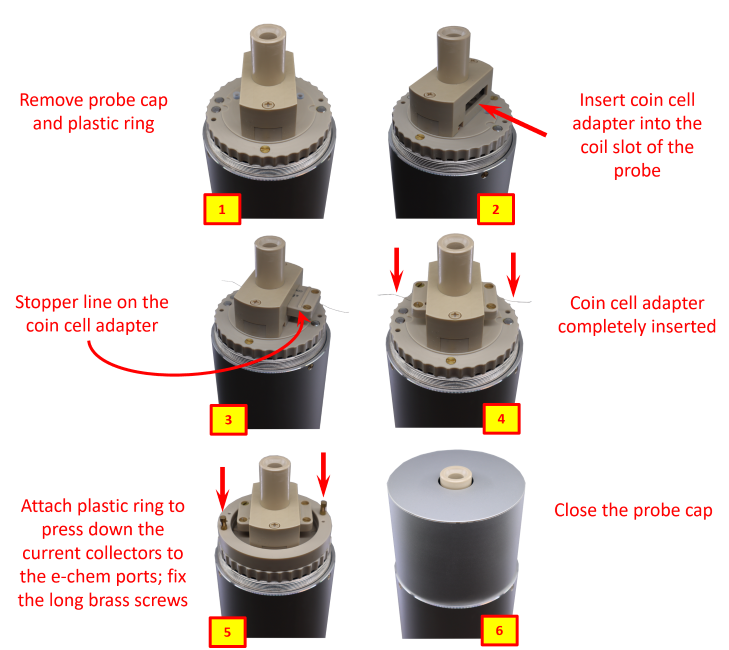

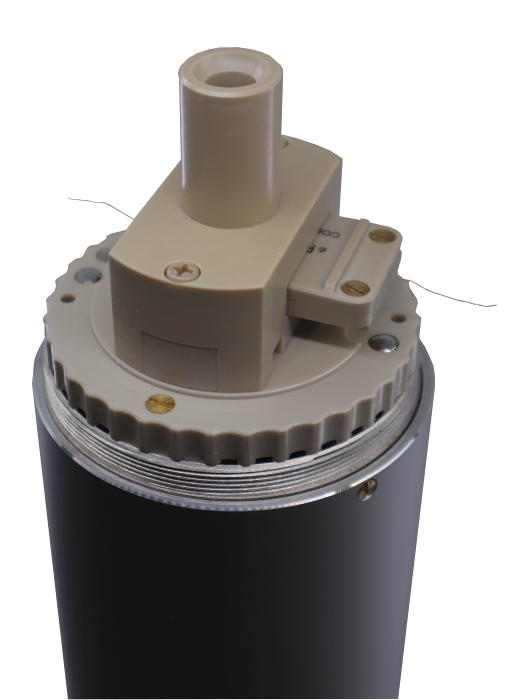

• Suitable for coin cells, pouch cells and plastic bag cells
• Suitable for all electrochemical cyclers
