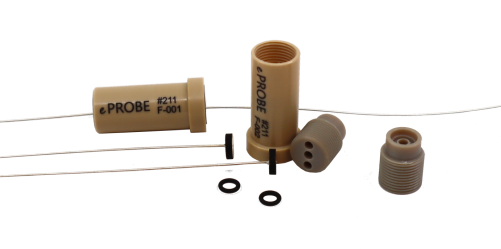

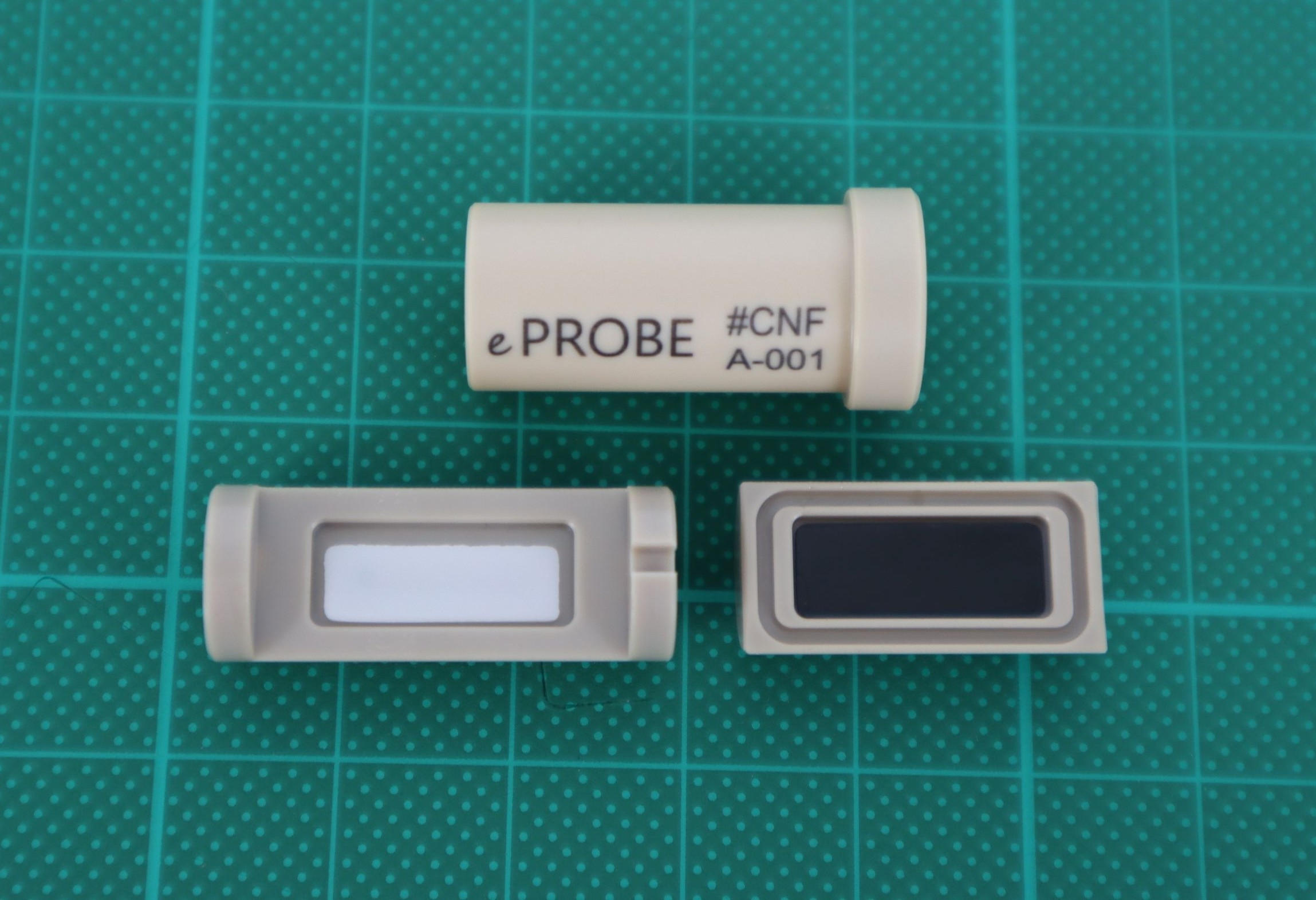

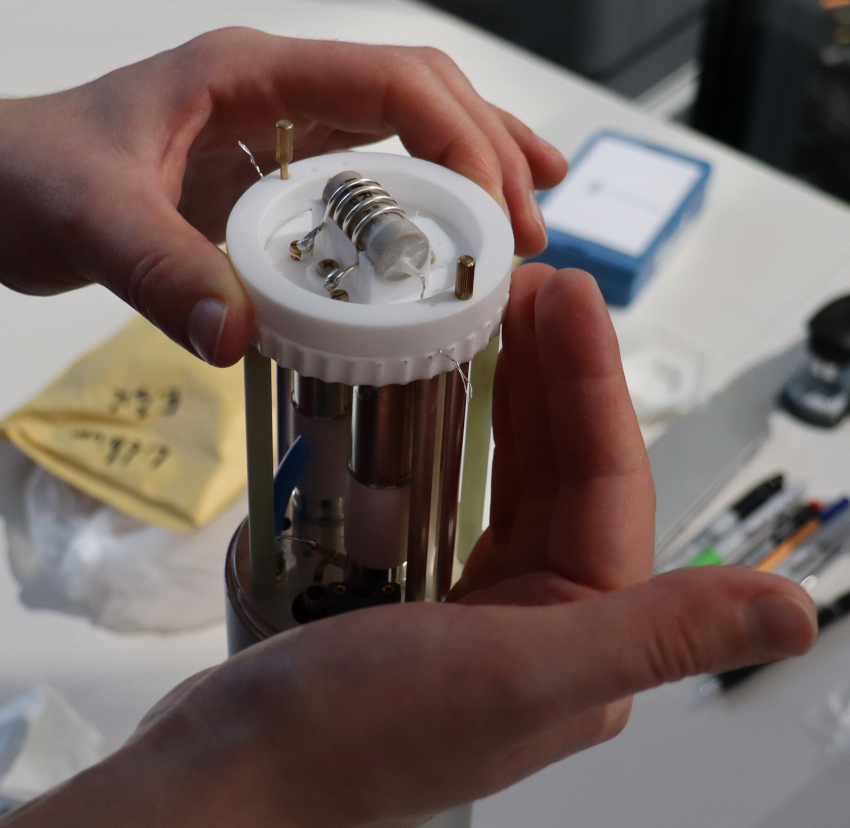

In situ NMR cells

  • Modular cylindrical plastic casing to assemble electrochemical cells
  • Comprising three PEEK parts (top, bottom, and capsule)
  • Encapsulated to hold cell parts in place and produce pressure

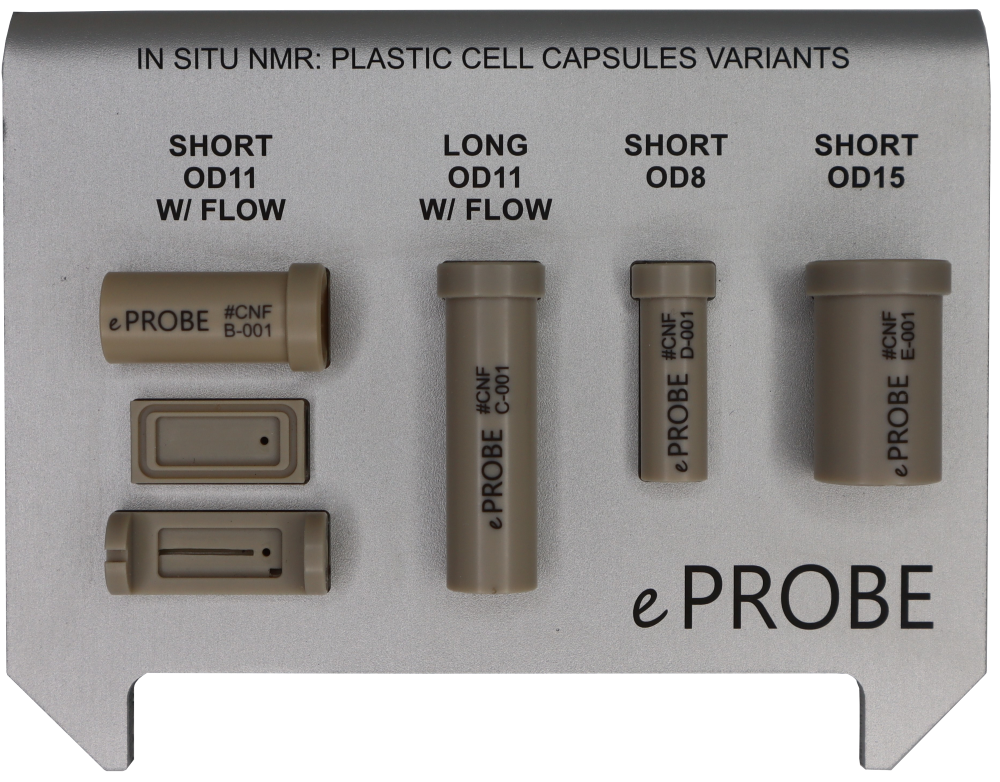

PCC-SHORT-OD8

  • Plastic cell capsule short outer diameter 8 mm no flow-option
  • L 26 mm, OD 8 mm, cavity 15×4 mm (depth 1 mm)
  • Suited for solenoid coil ID 8 mm

PCC-SHORT-OD11

  • Plastic cell capsule short outer diameter 11 mm no flow-option
  • L 26 mm, OD 11 mm, cavity 15×6 mm (depth 1 mm)
  • Suited for solenoid coil ID 11 mm

PCC-SHORT-OD11-WF

  • Plastic cell capsule short outer diameter 11 mm with flow-option
  • L 26 mm, OD 11 mm, cavity 15×6 mm (depth 1 mm)
  • Suited for solenoid coil ID 11 mm
  • Tubing in/outlet in bottom part
  • Suited for tubing of OD 1.5 mm (e.g. ID 0.8)

PCC-LONG-OD11-WF

  • Plastic cell capsule long outer diameter 11 mm with flow-option
  • L 40 mm, OD 11 mm, cavity 27×6 mm (depth 1 mm)
  • Suited for solenoid coil ID 11 mm
  • Tubing in/outlet in bottom part
  • Suited for tubing of OD 1.5 mm (e.g. ID 0.8)

PCC-SHORT-OD15

  • Plastic cell capsule short outer diameter 15 mm
  • L 26 mm, OD 15 mm, cavity 15×8 mm (depth 2 mm)
  • Suited for solenoid coil ID 15 mm

Solid state cells

Solid-state battery in situ NMR cells

  • Modular cylindrical plastic casing to assemble solid-state batteries
  • L 26 mm, OD 11 mm, materials space approx. 1 mm thickness
  • Comprising three PEEK parts (capsule, two threads for electrodes)
  • Current collector plates with attached wire and O-ring sealing
  • Encapsulated to hold cell parts in place and produce pressure
  • Suited for solenoid coil ID 11 mm

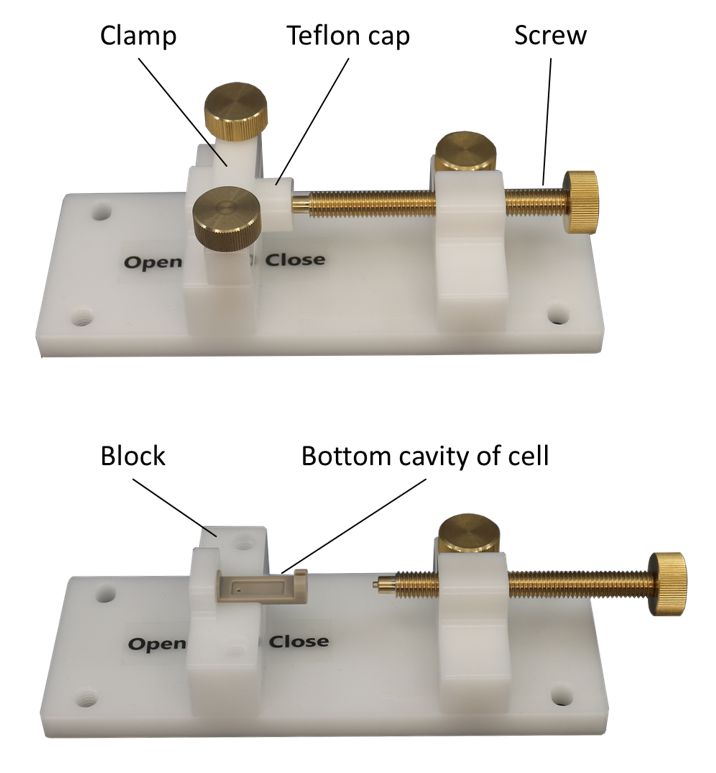

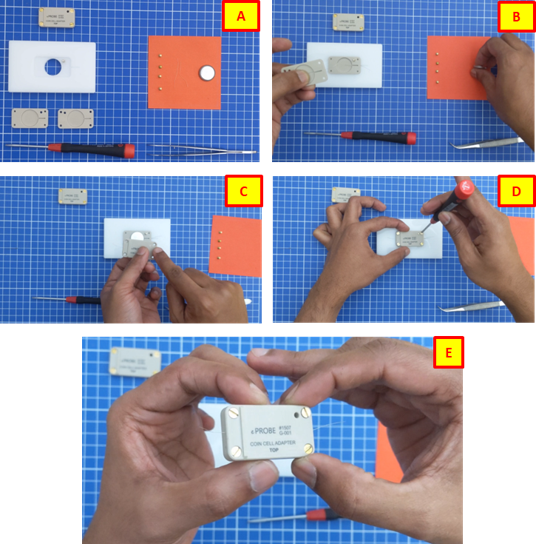

In situ NMR cell dis/assembly tools

Plastic cell capsule (dis)assembly tool OD8

  • Suited for OD8 plastic cell capsules
  • Quick and easy assembly of the plastic cell capsule in three steps
  • Prevents misalignment and ripped-off current collectors
  • Suited for the glovebox

Plastic cell capsule (dis)assembly tool OD11

  • Suited for OD11 plastic cell capsules (short and long)
  • Quick and easy assembly of the plastic cell capsule in three steps
  • Prevents misalignment and ripped-off current collectors
  • Suited for the glovebox

Plastic cell capsule (dis)assembly tool OD15

  • Suited for OD15 plastic cell capsules
  • Quick and easy assembly of the plastic cell capsule in three steps
  • Prevents misalignment and ripped-off current collectors
  • Suited for the glovebox

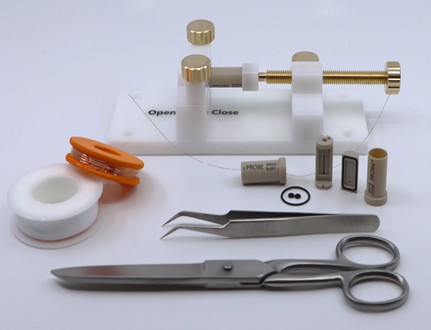

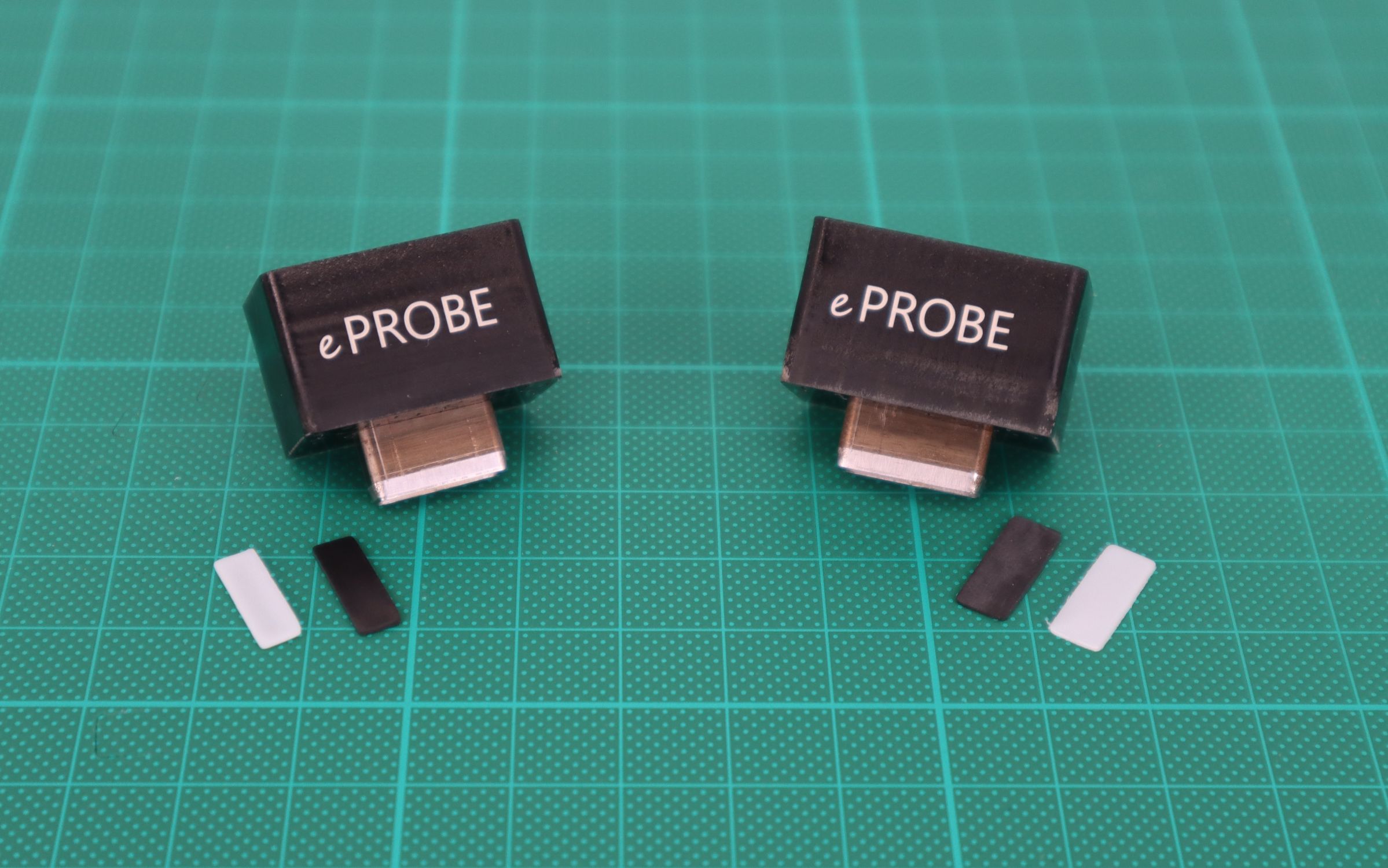

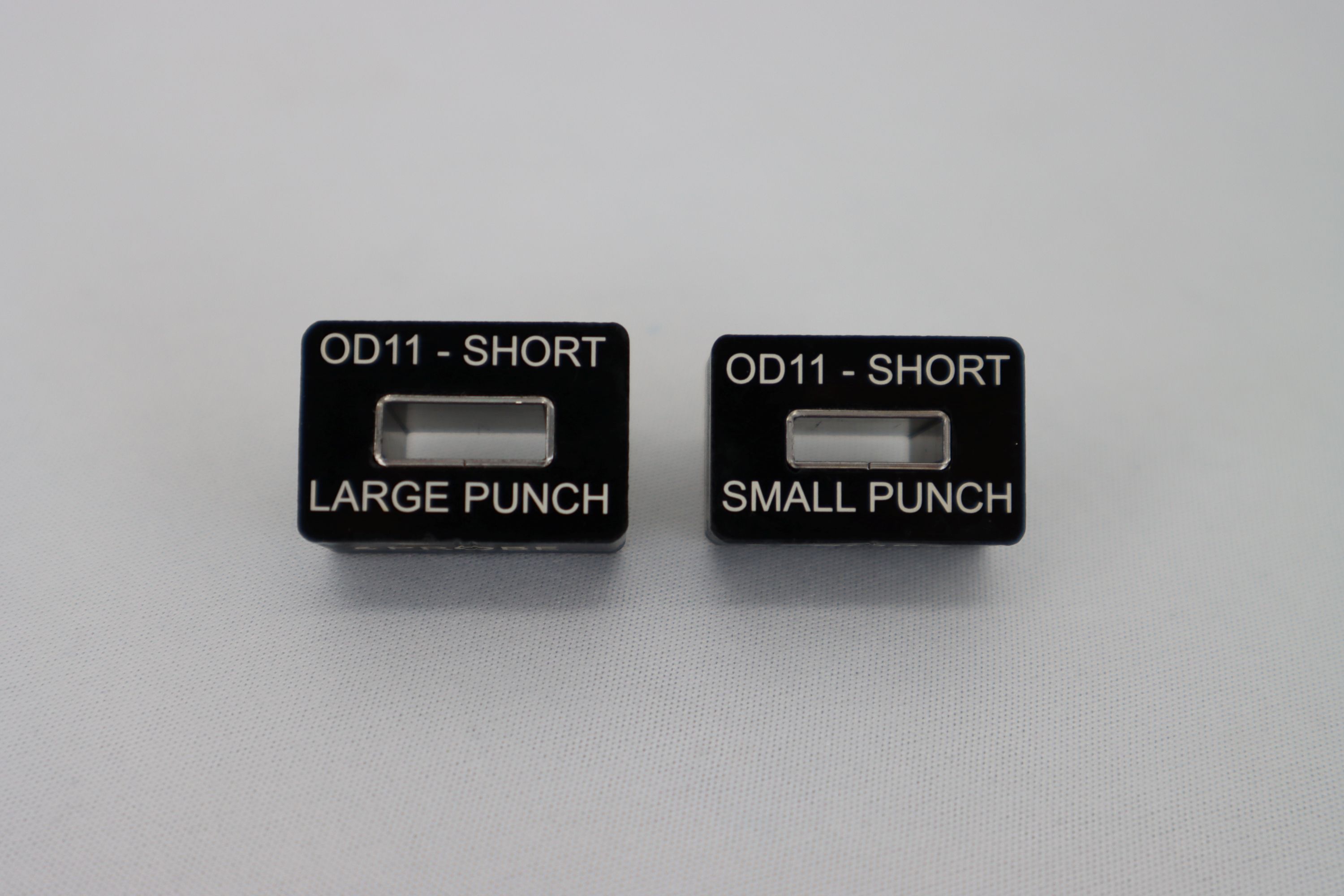

In situ NMR cell assembly kit

  • Accessories kit comprising 30+ parts for the assembly of plastic cell capsules and other in situ cells, e.g. plastic bag cells
  • Current collector wire and mesh (Al and Cu)
  • Spacer materials (Teflon and Viton)
  • Sealing materials: reusable O-rings and two-component glue
  • Sealing materials: reusable putty-like pressure-sensitive adhesive
  • Teflon tubing

In situ NMR cell assembly spare parts

Cu wire OD 0.15 mm (500 mm)
Current collector for the assembly of plastic cell capsules, e.g. with Cu mesh

Cu wire OD 0.20 mm (500 mm)
Current collector for the assembly of plastic cell capsules, e.g. with Cu mesh

Aluminium mesh 150×150 mm
Assembly of in situ cells: plastic bag cells and/or plastic cell capsules

Copper mesh 150×150 mm
Assembly of in situ cells: plastic bag cells and/or plastic cell capsules

PTFE tube ID 0.6 mm OD 1.3 mm WALL 0.35 (500 mm)
For use with flow option of plastic cell capsule

PTFE tube ID 0.8 mm OD 1.3 mm WALL 0.25 (500 mm)
For use with flow option of plastic cell capsule

Teflon sheet 150×100×0.25 mm
Assembly of in situ cells: plastic bag cells and/or plastic cell capsules

Teflon sheet 150×100×0.50 mm
Assembly of in situ cells: plastic bag cells and/or plastic cell capsules

NBR rubber sheet 50×50×0.5 mm
Assembly of in situ cells: plastic bag cells and/or plastic cell capsules

NBR rubber sheet 50×50×1.0 mm
Assembly of in situ cells: plastic bag cells and/or plastic cell capsules

Ask for more

eCAT - in situ NMR/e-chem data analysis tool

Our tool "eCAT" allows automatic e-chem/NMR (raw) data processing and visualisation. The raw data input, e.g. Bruker Topspin NMR and BioLogic EC-Lab data is combined in one plot with individual NMR raw data handling such as baseline and phase correction for each spectrum. Postprocessing of the data including the peak fitting and the creation of videos is optional.

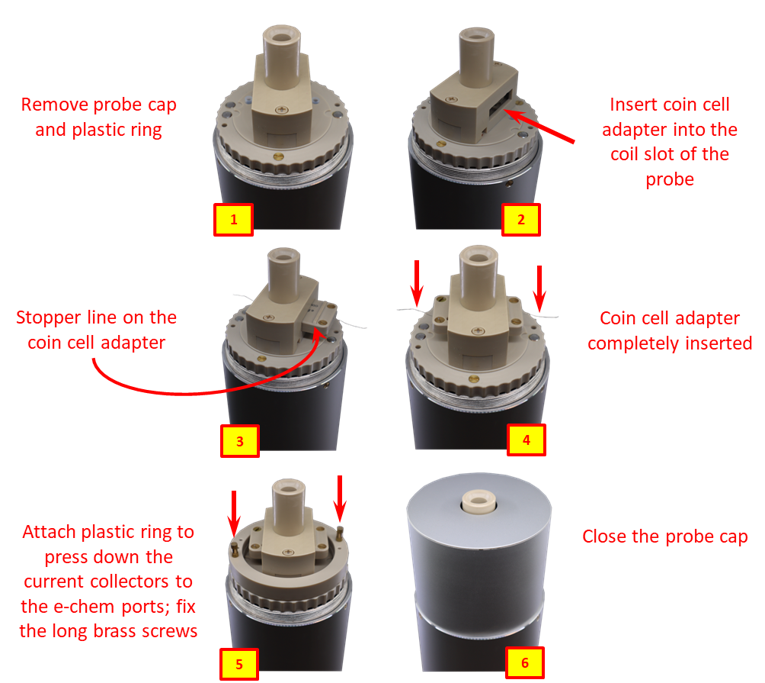

In situ setup for static NMR/MRI probes

Three-ports in situ setup for static NMR/MRI probes

  • Magnet shielding plate for wide-bore magnet
  • Three non-magnetic double-shielded cables with eyelet soldered to one side (connection to the in situ cell) and SMA adapter on the side that connects to the shielding plate. The SMA adapter has rotating end; i.e. the cable will not twist when attaching it to the SMA ports of the shielding plate.
  • Note, cable length will be customised depending on the dimensions of the magnet/bore
  • Three SLP-2.5+ filters
  • Three SLP-5+ filters
  • Three RG316 in situ cables (5 m each) to connect the shielding plate to the electrochemical cycler/potentiostat (SMA socket / SMA plug)
  • Three SMA—banana plug adapters suitable for Biologic SP-150e and similar devices

Three-way in situ cell adapter

  • In situ cell adapter to clip, solder, or through-hole connections of in situ cells (plastic cell capsule and other designs)
  • Attached to three non-magnetic double-shielded cables with SMA adapters to the shielding plate
  • Note, length will be customised depending on the dimensions of the magnet/bore

Watch this space for your customised solution - contact us.
